DAS3000-1

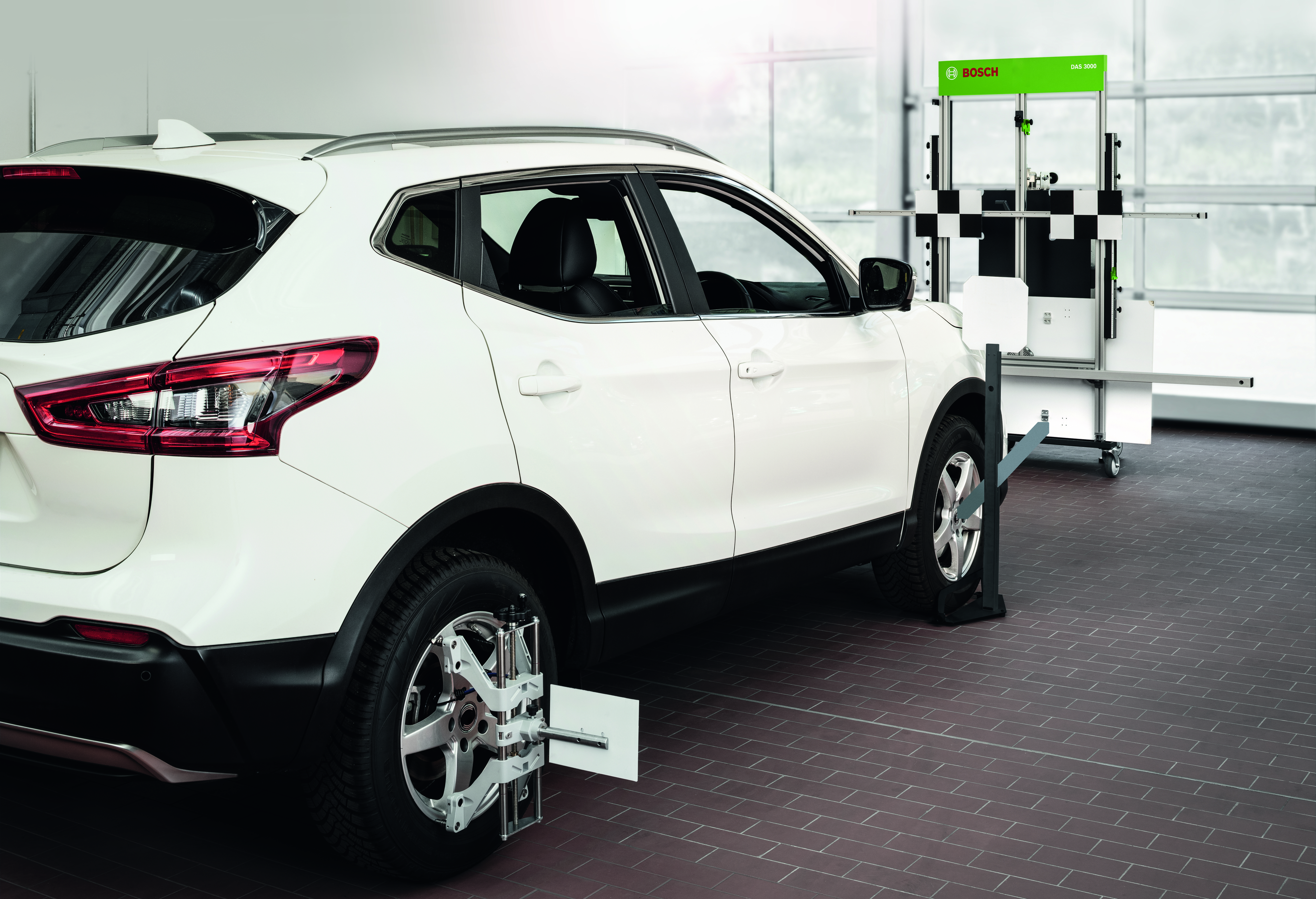

The DAS3000-1 ADAS Recalibration System is a complete solution that enables shops to recalibrate vehicle camera and radar systems with confidence, speed, efficiency, precision and a vision for the future.

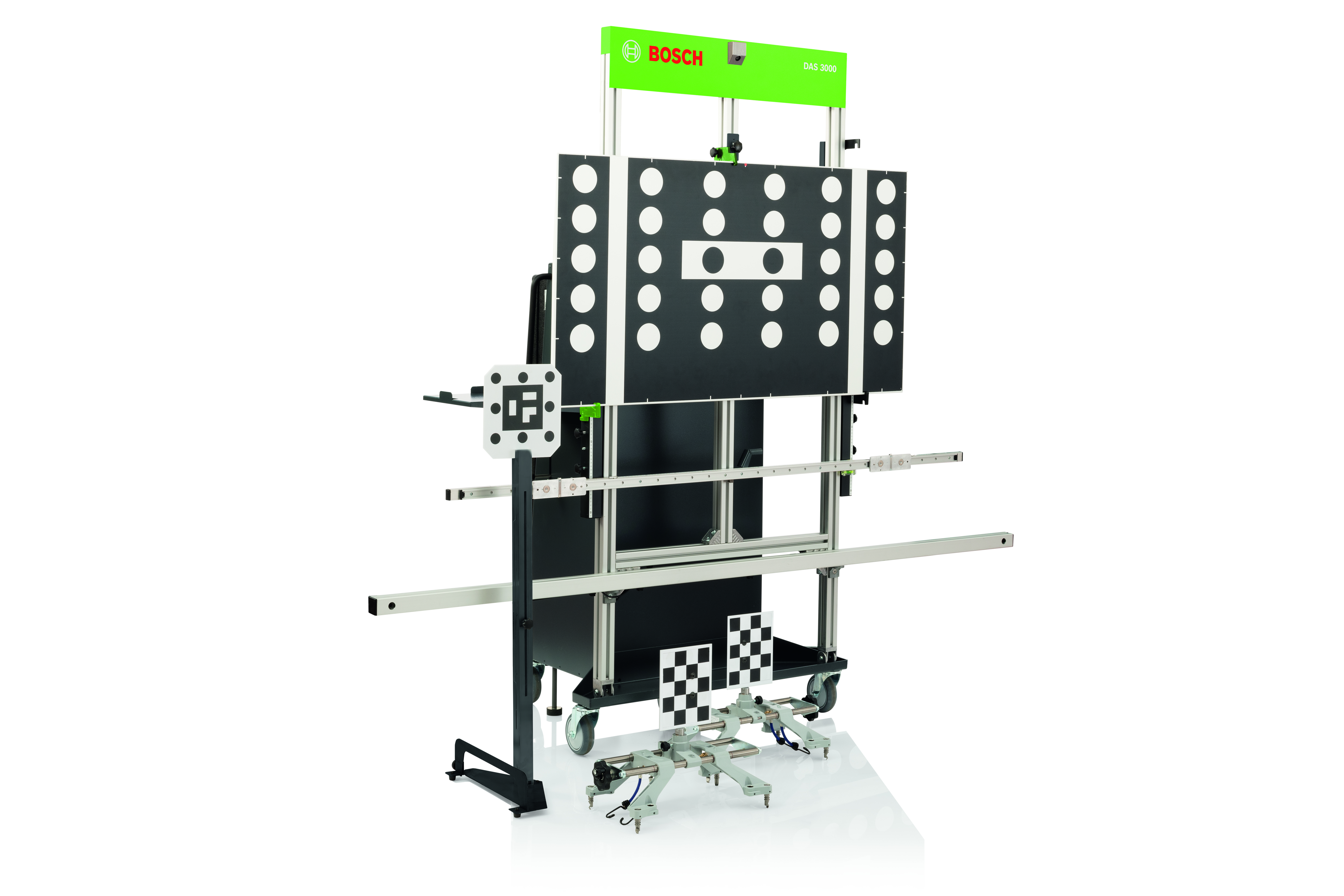

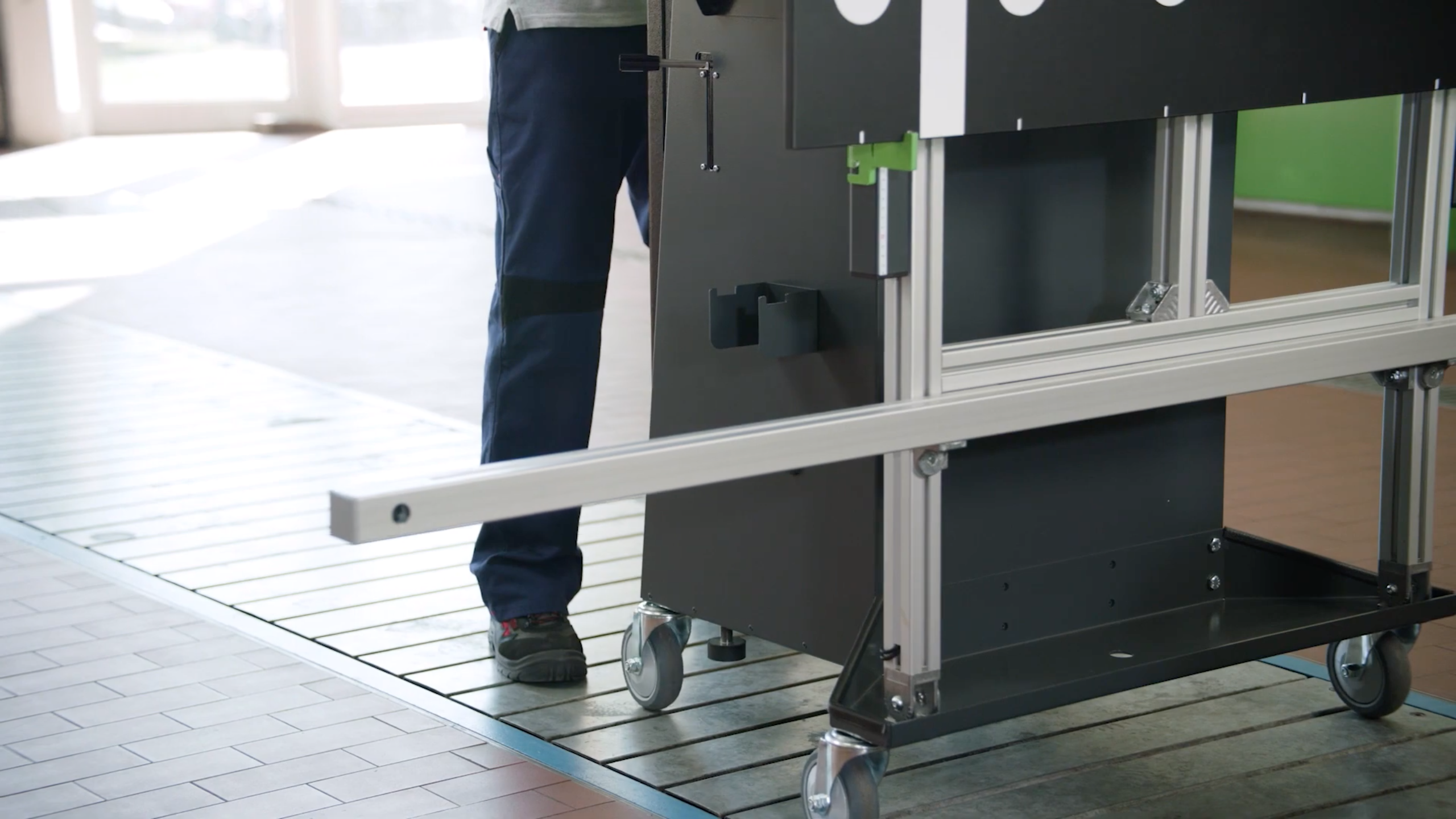

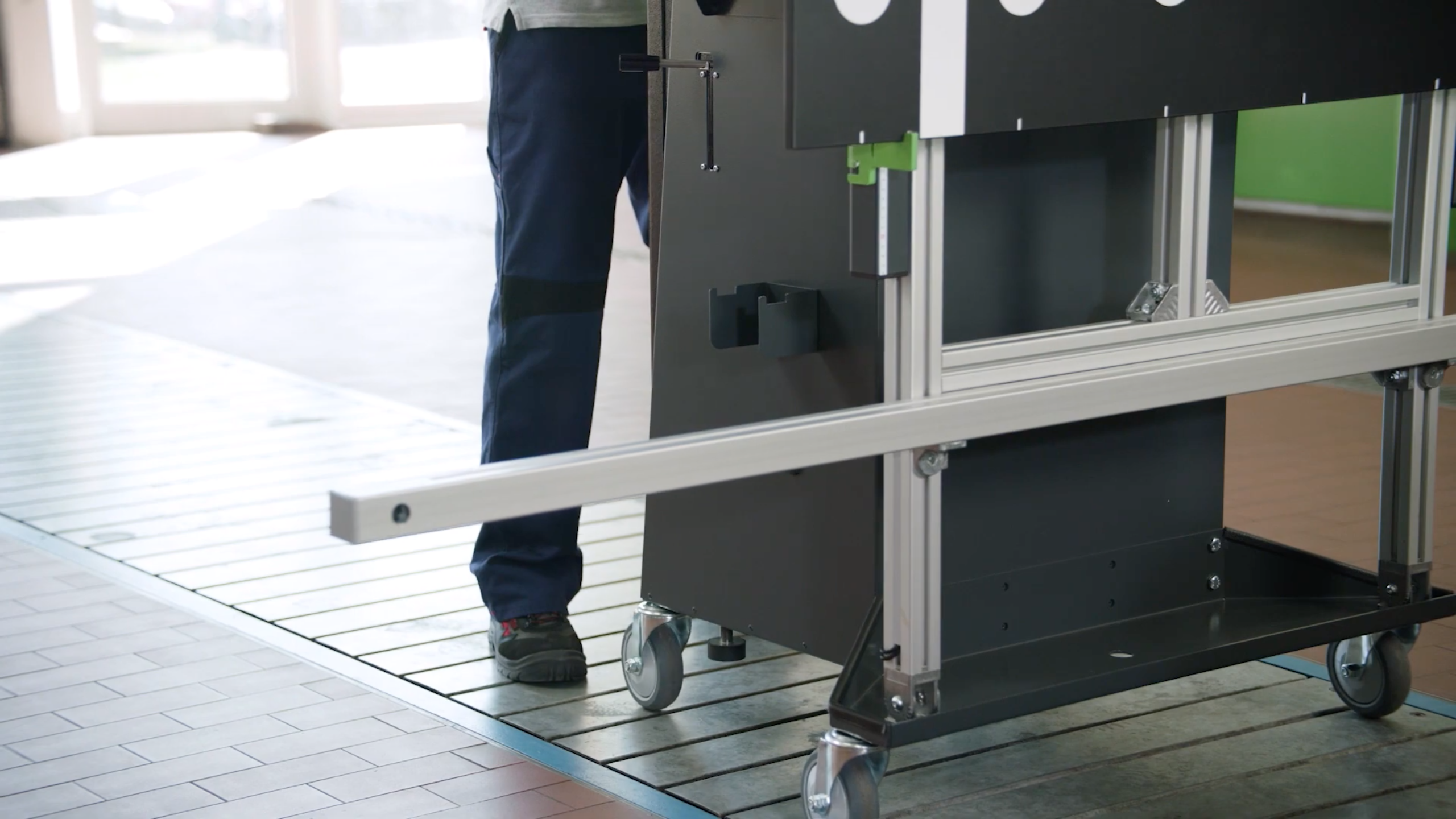

  • DAS 3000 Recalibration fixture precisely holds the radar reflector and camera targets for sensor recalibration.

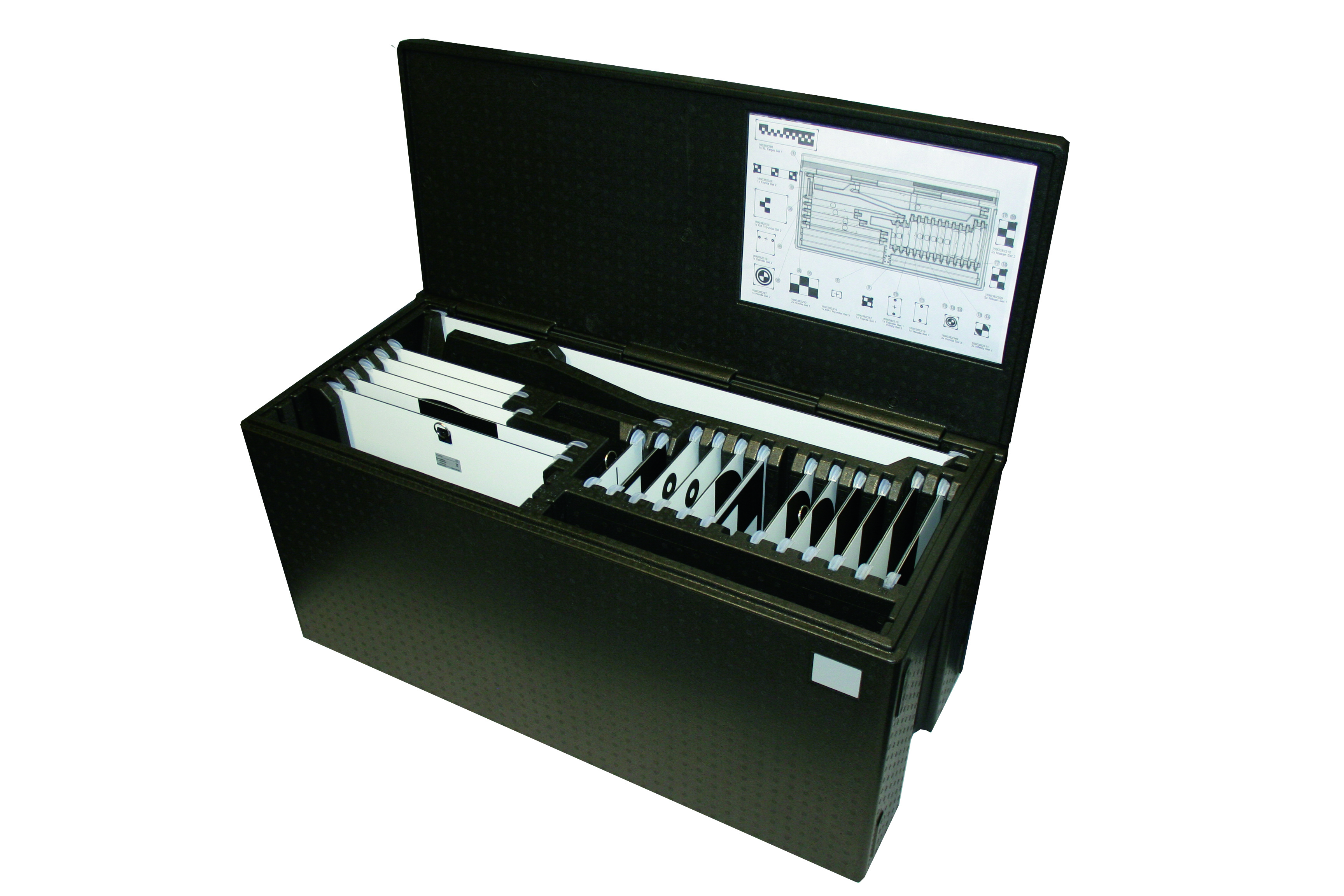

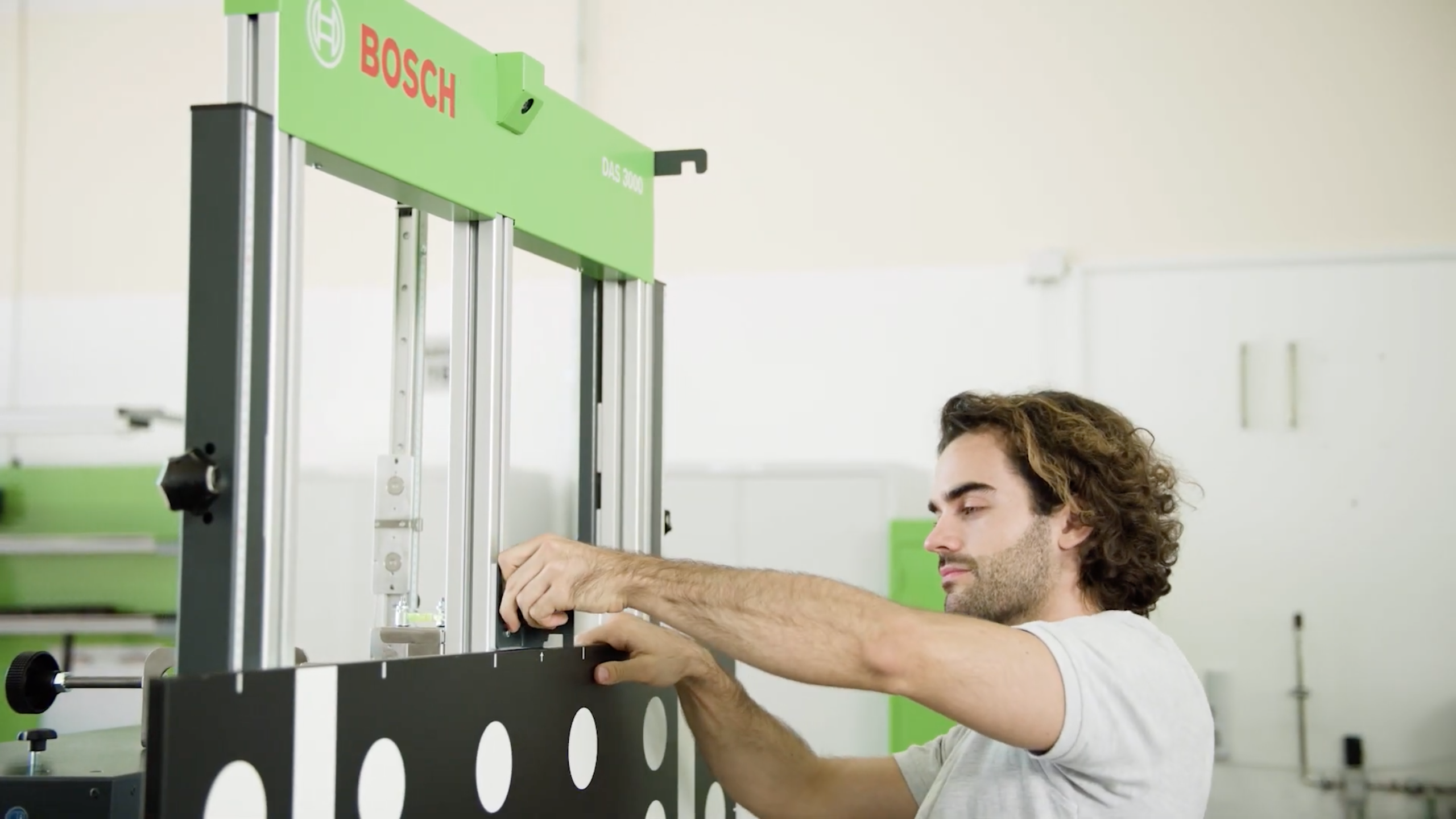

    • Robust camera targets with integrated storage box makes finding the proper target easy and helps maintain the integrity and serviceability of the targets. Conveniently stored in the calibration unit keeps your work area organized.
    • Innovative, dual purpose VW camera board is also a Universal OEM radar reflector, a specially designed target board for calibrating both radar systems as well as Volkswagen cameras

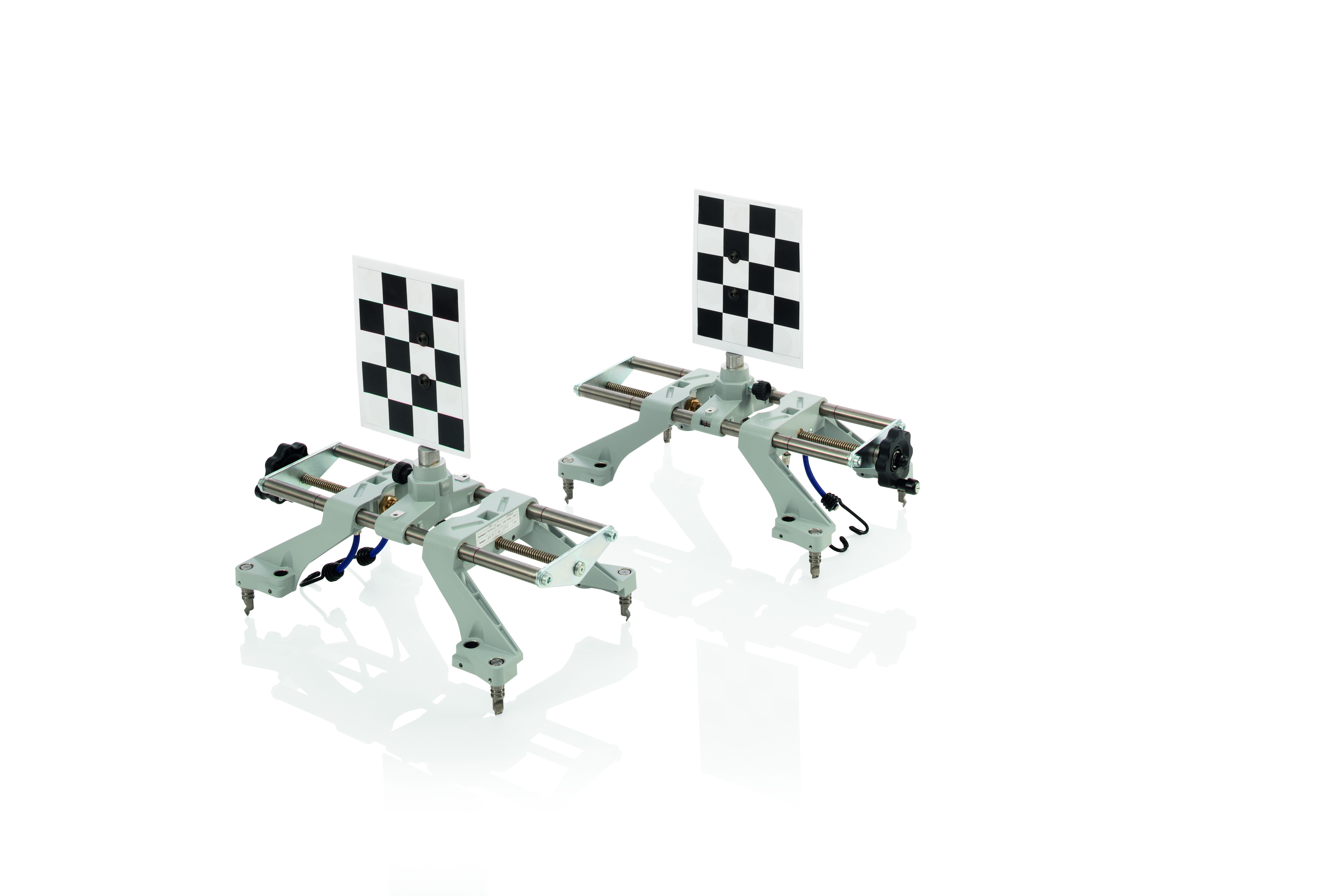

    • State-of-the-art distance and wheel hub thrust angle alignment markers are used by the systems guided instruction to efficiently direct the user to place and align the fixture to the vehicle for the most accurate calibration

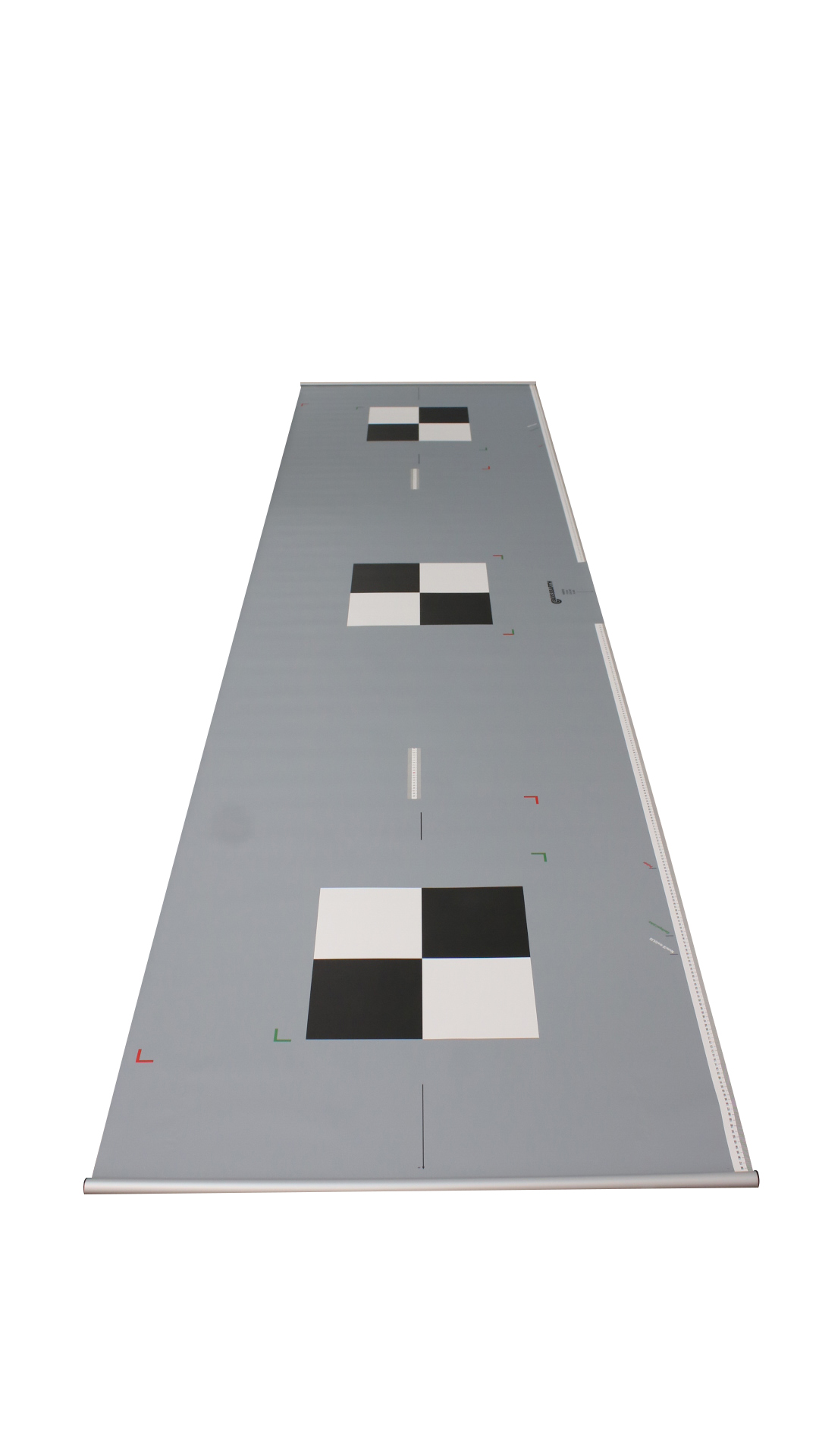

  • Surround view floor mat targets support multiple OEM’s
  • Leading edge Bosch ADAS Positioning System (BAP) utilizes technology and industrial-grade vision sensors to measure the distance and angles of the fixture, in relation to the vehicle, providing the most precise measurements ensuring the exact target positioning required for the most accurate calibration.

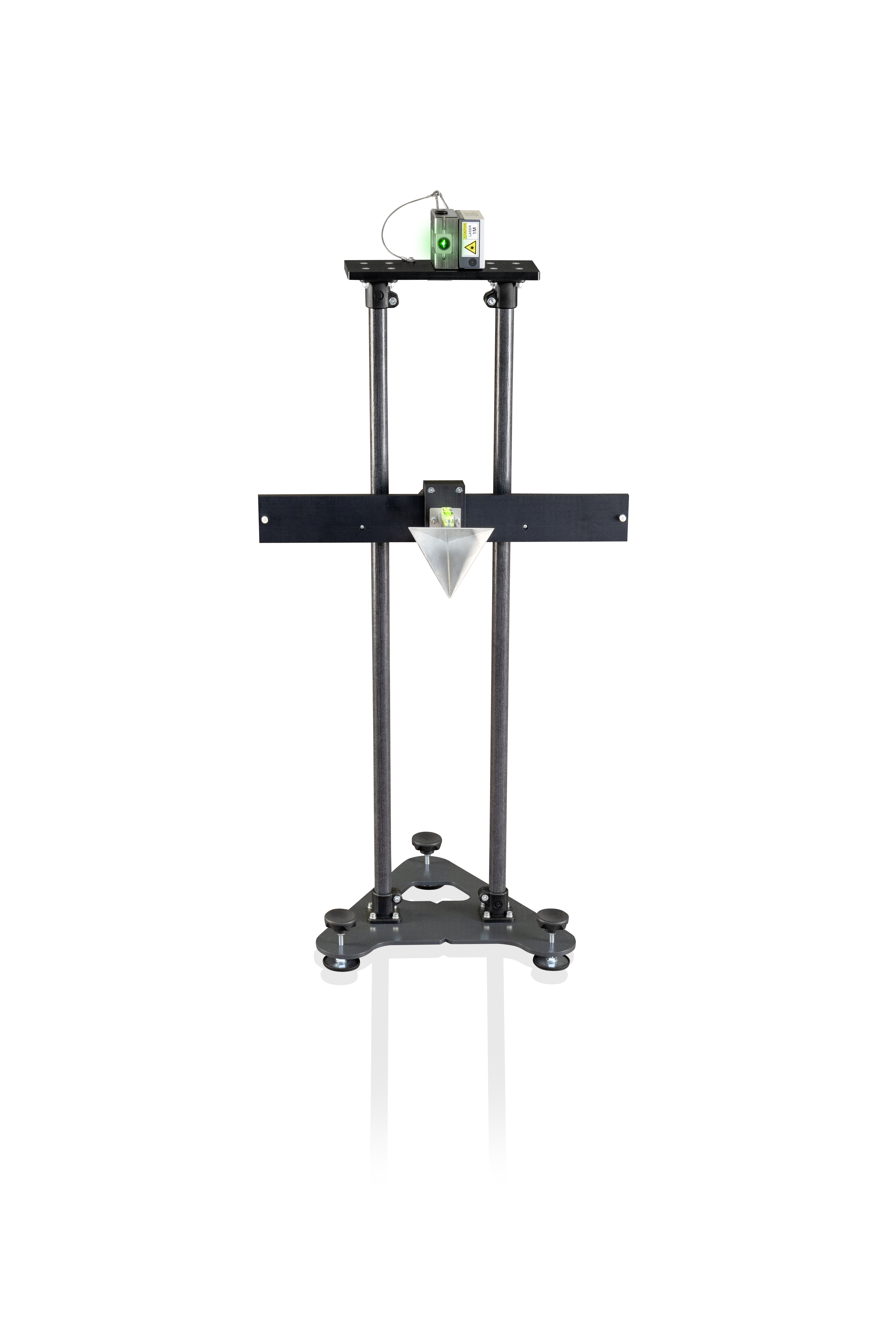

  • SCT 815 Radar Reflector: Universal OEM cone reflector target and carrier for calibration of front, corner and rear radar sensors. Laser technology helps to align the SCT 815 for precise and effective calibration. Constructed with fiberglass material to avoid false and improper radar calibration, carrier designed to connect future targets and alignment technologies. Suited for Kia, Hyundai, Mazda, Toyota / Lexus and Honda vehicle recalibrations.
  • ADS 625 with ADAS Recalibration Software Package: Control the vehicle specific calibration and adjustment procedures with guided instruction
  • The guided instructions walks users through commonized, simplified recalibration procedures including setting up the fixture, target selections and sensor recalibration compatible with the unique requirements of OEM makes and models. These commonized procedures reduce the number to a fraction of OE set-up variations and the complexity of ADAS recalibrations
  • The DAS 3000 is designed to be upgradable to accommodate future sensor calibration technologies, enabling shops to take on the challenge of future technologies

Technical Support

12 months of Enhanced ADAS support is included with the DAS 3000-1 Master Kit. The DAS 3000 has been designed with the technician in mind and is incredibly easy to use. However, we know that even the best of us get stumped once in a while. That is why the DAS 3000-1 includes a full 12 months of Enhanced ADAS Support from our professionally-trained ADAS technical support team. Our technical support team can answer questions, troubleshoot and assist virtually with issues relating to ADAS calibrations. The Enhanced ADAS Support can be extended for an additional 12 month. Even without the Enhanced ADAS Support package, our technical support team will still be available to advise and help with questions related to the scan tool and the DAS 3000 hardware. However, the Enhanced ADAS Support goes beyond just the scan tool. Our ADAS team can provide remote assistance to troubleshoot ADAS calibration issues and recommend solutions to help get the job done.

The Enhanced ADAS Support team can be reached at: Tel: 1-888-812-3275 techsupport.diagnostics@us.bosch.com

Virtual Training Included

Bosch is committed to not only providing the best recalibration equipment, but also helping shops use that equipment to its fullest. With the purchase of the DAS 3000, users can register for virtual training hosted by the Bosch technical training team. This interactive training class is designed to get you started recalibrating ADAS functions using your DAS 3000 ADAS Recalibration System.

The training will include:

  • ADAS Systems and Technology
  • DAS 3000 Overview
  • ADAS Calibration Process
  • Q&A session

Once you have registered your DAS 3000, you will receive a training registration link where you can select your preferred date and time to attend the virtual training event. Training sessions will be recorded and made available for reference.

Read More
Read Less
Features
Bosch ADAS Positioning (BAP) System
Guided instructions
Includes ADS 625 Diagnostic Scan Tool
Simplified Set-up
Modular, upgrade-able design for future ADAS technologies
This product can expose you to chemicals including Nickel (Metallic), Di-isodecyl phthalate (DIDP), which is known to the State of California to cause cancer.
This product can expose you to chemicals including Nickel (Metallic), Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects.
For more information for to www.P65Warnings.ca.gov
Kit Contents
DAS 3000 S20 frame with integrated Bosch ADAS Positioning (BAP) cameras
Dual Purpose radar reflector board with VW camera target
SCT 815 Radar Reflector
Camera target storage box
Universal/Hyundai camera target
Honda #1 camera target
Toyota #1 camera target
Daimler/Infinity #2 camera target
Mazda #1 camera target
Honda #3 camera target
Toyota/Lexus #3 camera target
Hyundai/KIA #3 camera target
Nissan #2 camera target
Universal/Infinity #1 camera target
Mazda #2 camera target
Mitsubishi #1 camera target
GM surround view floor mat target
Ford surround view floor mat target
Honda surround view floor mat target
Mitsubishi surround view floor mat target
Nissan surround view floor mat target

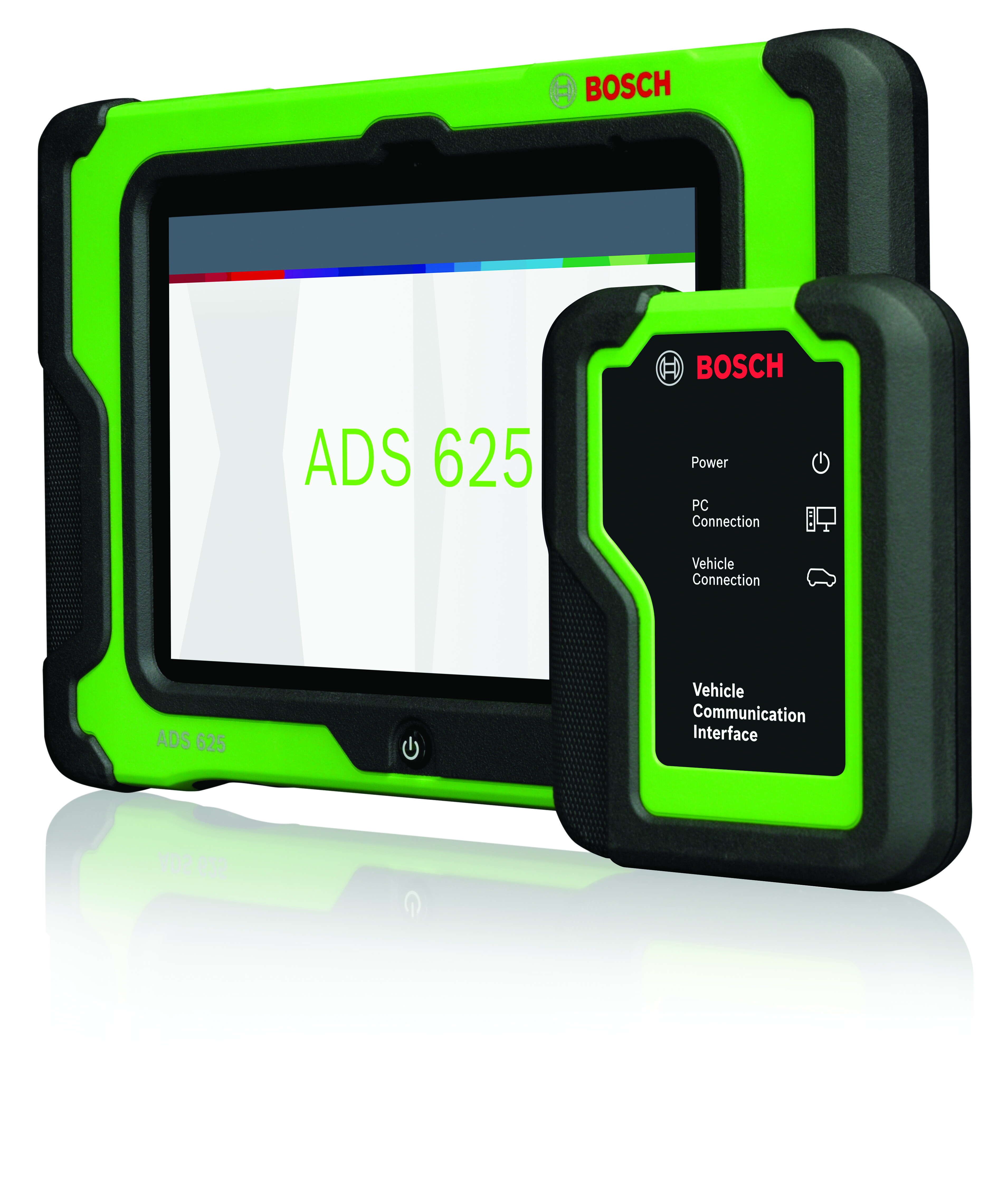

ADS 625 Diagnostic Scan Tool
Tool Kit

Frequently Asked Questions

Q. How does distance measurement work with the DAS 3000 S10?
A.

The camera and reference board are used for distance measurement. The camera measures the distance between the adjustment device and the reference board, making set-up precise and efficient.

Q. Will sunlight, weather or other environmental conditions affect ADAS camera calibrations?
A.

Yes, sunlight, clouds & other environmental conditions may affect the success of both static & dynamic calibrations by casting shadows, reflections or creating poor lighting conditions.

Q. What is the direct footage measurements required in a shop for static calibrations?
A.

The space needed for static calibrations can vary by OEM, vehicle or calibration type. Bosch recommends a space of 45ft x 30ft free from obstructions, with a level floor to accommodate most static calibrations. Please refer to the Bosch DAS 3000 Technical Brochure for more details on facility recommendations.

Q. What are the variety of calibrations performed for static?
A.

Each manufacturer specified the distance, height and width of the target and the type of target required. DAS 3000 has optimized configurations while still conforming to manufacturer requirements.

Q. Can the DAS 3000 be used with front end alignment equipment?
A.

Yes, the DAS 3000 operates with in ground and raised alignment equipment, with a vertical floor offset of up to 12" in height.

Q. Which original equipment manufacturers require static or dynamic calibrations?
A.

There are a variety of methodologies that vary by the different car companies:

  1. Some are STATIC exclusively
  2. Some are DYNAMIC exclusively
  3. Some are both, a STATIC + DYNAMIC component

In general, the North American OEMs use mostly dynamic, the Asian & European manufacturers use Static or Static + Dynamic component

Q. For typical static calibrations, what is the time required for the calibration to be performed?
A.

The time required to set-up & perform the calibration depends on the car manufacturer and can vary from 20 to 45 minutes to upwards of an hour. Bosch's DAS3000 system has simplified the processes for efficient calibration and reduced the set-up & calibration time to 10-15 minutes or less in most instances.

Q. What is the best way to clean the targets?
A.

The best way to clean the targets is by using a window or screen cleaning solution and a clean cloth.

Q. Why do we need to stand clear of the camera targets during calibrations?
A.

One must stand clear of the camera targets so the vehicles camera view is clear and unobstructed to the camera targets during calibration.

Q. Why must we remove all metal objects from in front of the vehicle for radar calibrations?
A.

One must remove all metal objects from in front of the vehicle during a radar calibration because radar waves can reflect off of any metal surface, back to the vehicles radar, potentially providing inaccurate feedback to the vehicles radar controller during calibration.

Q. How do I account for ambient light or shadows?
A.

There are a few options to solve problems with ambient light, sunlight and shadows. The first option is relocating the vehicle to an area with more controlled lighting. Another option is blocking out sunlight coming in from windows.

Q. How do I register for live trainings?
A.

Once purchase is complete, a private link will be provided to register for live trainings.

Q. Will the Bosch DAS 3000 be compatible with future ADAS technologies?
A.

Yes, the DAS 3000 was designed to be flexible and modular for expansion to future technologies. The fixture will accept Bosch accessories to perform heavy-duty truck calibrations as well as automotive LIDAR calibrations when those technologies become prevalent in the industry.

Q. Is technical support included?
A.

The DAS 3000-1 includes all the standard technical support of our diagnostics tools as well as a full 12 months of Enhanced ADAS Support from our professionally-trained ADAS technical support team. Our technical support team can answer questions, troubleshoot, assist virtually with issues relating to ADAS calibrations and recommend solutions to help get the job done right.

Tel: 1-888-812-3275
Email: techsupport.diagnostics@us.bosch.com

Q. Are there video tutorials available to help with setup and calibration procedures?
A.

Yes, training videos are available, including out-of-the-box setup and various calibration procedures.

https://bit.ly/3mgY1WJ

Q. If the ADS 625 is sent in for repair and a loaner is sent out, how do I calibrate the DAS 3000 BAP camera?
A.

If your scan tool is sent in for repair, and a loaner scan tool is provided, the Vision Positioning cameras of the DAS3000 will require "Pairing" to the loaner scan tool with the QR Codes which came with your original DAS3000.

Q. What if I’ve lost or misplaced the QR codes which came with my original DAS3000?
A.

Bosch maintains a database of all DAS 3000 camera serial numbers & QR codes. Contact Bosch ADAS Technical Support for assistance.

Q. Will the DAS 3000 require periodic maintenance or calibration?
A.

Yes, like all precision measurement shop equipment, periodic maintenance and calibrations are required. Consult the user manual or the Bosch ADAS Technical Support team for assistance.

Software Subscriptions, Upgrades and Accessories

The resources you need to maintain and enhance your diagnostic tools.
