Direct Access to MOTOR
TruSpeed Repair with ADS X
Access OEM-sourced repair information, wiring diagrams, and diagnostic data directly from your Bosch ADS X scan tool, or from any PC or mobile device.
Access Anywhere
Login to MOTOR TruSpeed Repair
MOTOR TruSpeed Repair, included with the ADS X Enhanced Software Subscription — now accessible both on-tool and from a PC.
Sign in here to launch the MOTOR TruSpeed Repair and Bosch Wiring Diagram Database applications from anywhere you have internet access.*
Unprecedented access to OEM repair information
MOTOR TruSpeed Repair offers access to service and repair information and wiring diagrams from major domestic, Asian, and European OEMs — including BMW, GM, Ford, Honda, Toyota, and more — within days of being published.
Access is now available both from your Bosch ADS X scan tool or from a PC, making the Enhanced Software Subscription an all-around shop solution rather than just another subscription.
Technicians can access:
- Component locations
- Diagnostic trouble codes (DTCs)
- Maintenance schedules
- Repair procedures & specifications
- Technical service bulletins (TSBs)
- Circuit & connection diagrams
- OEM Position Statements & ADAS info
MOTOR TruSpeed Repair features & benefits
MOTOR TruSpeed Repair provides a complete suite of OEM repair information to ensure precise vehicle repairs, accessible directly from your ADS X tool or favorite WiFi-connected device.
Log in to access up-to-date repair information, both on-tool and from a PC
Use the integrated repair information to diagnose the issue, then use the labor time guide to quote the job — all from the tool, or the comfort of the front desk.
Access to OEM sourced component locations and guides
Easily search for components and identify where they are located. Find what you need fast with intuitive search and detailed OEM diagrams.
Manufacturer specific repair information
Find OEM repair procedures, technical service bulletins, belt and harness routing, and torque specifications without leaving the vehicle's side. Easily solve problems and stay focused - no need to leave the job.
Access ADAS and collision repair procedures
MOTOR TruSpeed Repair is not limited to general repair information. Technicians and shops can also access OEM required repair procedures for collision repair, body and paint work, as well as ADAS repair procedures, OEM position statements and calibration information.

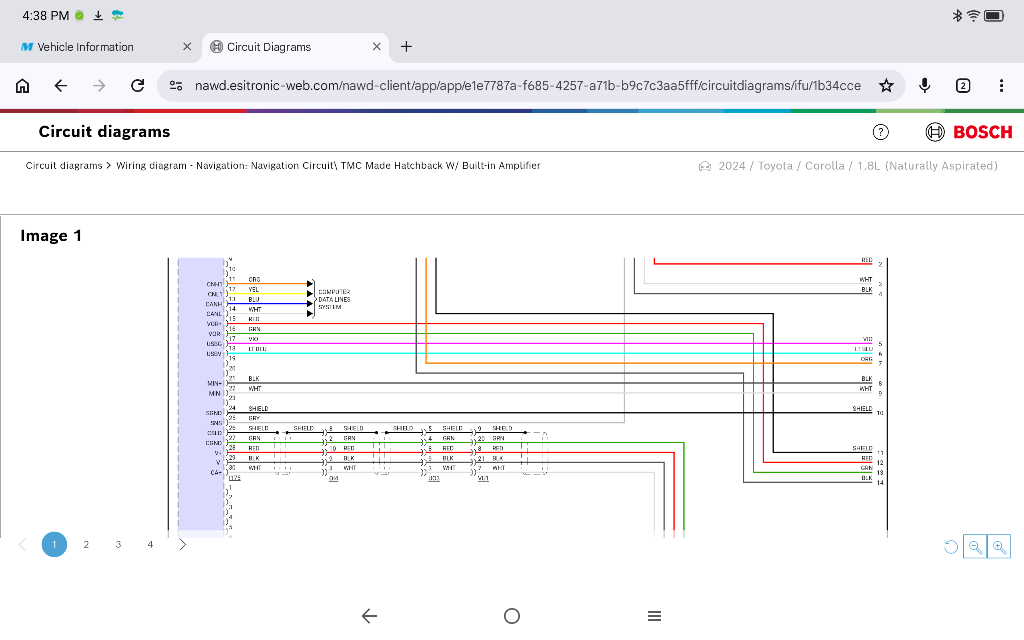

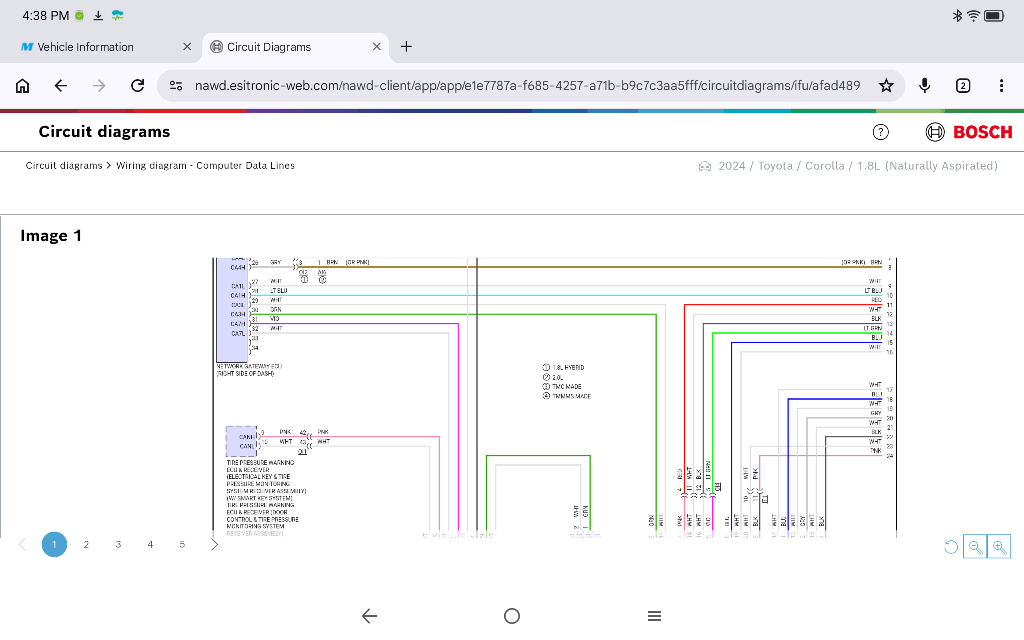

The industry's most trusted wiring diagram database.
Bosch has been developing a unified, easy-to-read aftermarket wiring diagram database since 1993. Consistent formatting across every OEM means zero learning curve.
700,000+
Wiring Diagrams
OEM-sourced, spanning every major vehicle system
1985–2025
Model Year Coverage
40 years of coverage — classic to current
ADS X software coverage
Leading coverage for domestic, Asian, and European vehicles as far back as 1976 up to the latest 2026 model year.
98.5%
Vehicles covered
56,361
Special Tests+ 0
Added in v7.4 update
1,596,982
System Applications+ 0
Added in v7.4 update
3,379
ADAS Calibrations**ADS 10X Plus
+ 73
Added in v7.4 update

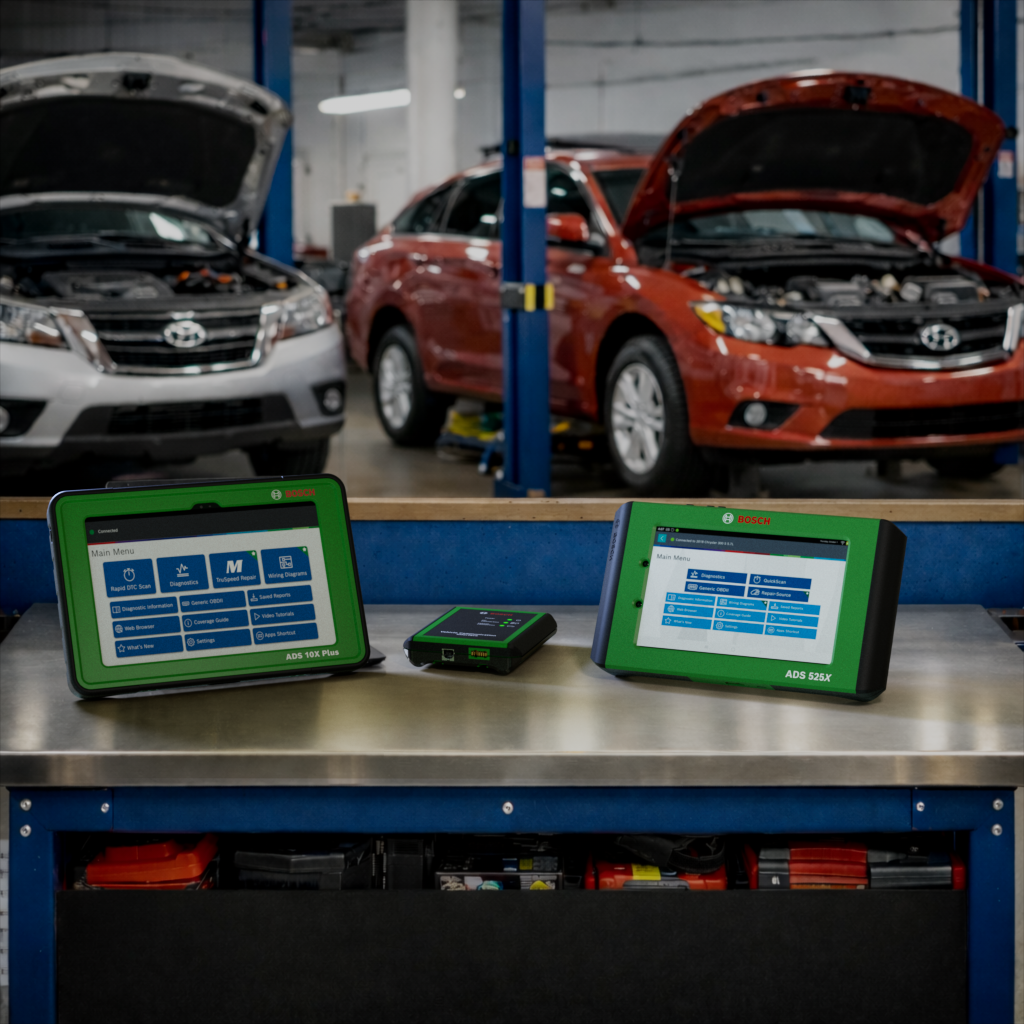

ADS X Series
Explore the Bosch ADS X diagnostic tools compatible with MOTOR TruSpeed Repair.
ADS 10X Plus
ADAS-ready. Authority-grade.
The most capable tool in the ADS X lineup — with full ADAS calibration capability and J2534 compliance built in.
View product details
ADS 525X
Professional diagnostics, priced for every shop
Built for high-volume independent shops that need speed, reliability, and deep diagnostic capability at every bay.
View product detailsReady to elevate your diagnostic workflow?
Sign in now to access MOTOR TruSpeed Repair, wiring diagrams, and more — included with your ADS X Enhanced Software Subscription.
