Professional Compression Tester

  • FIX 7828
  • FIX 7828

Professional Compression Tester

FIX 7828

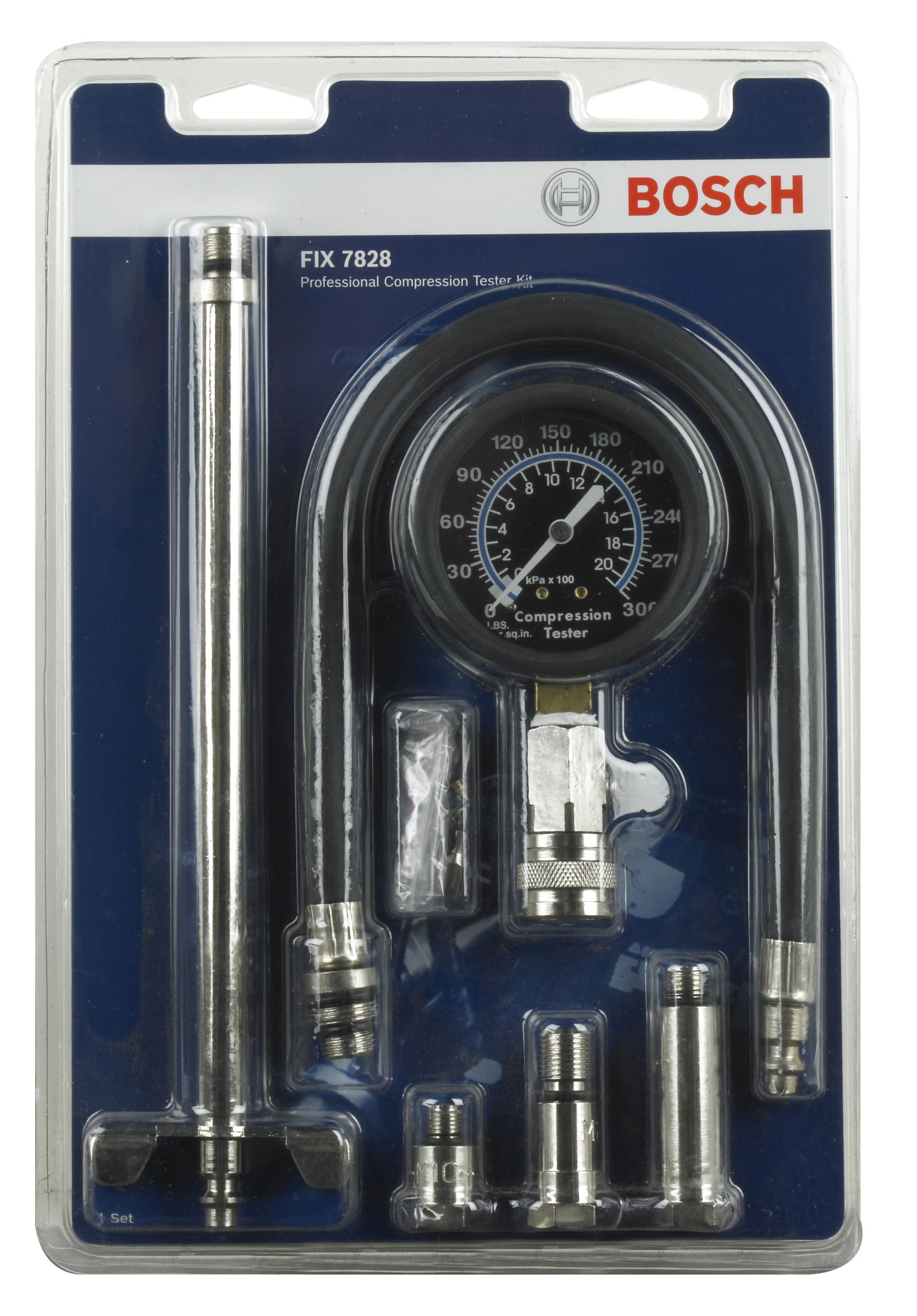

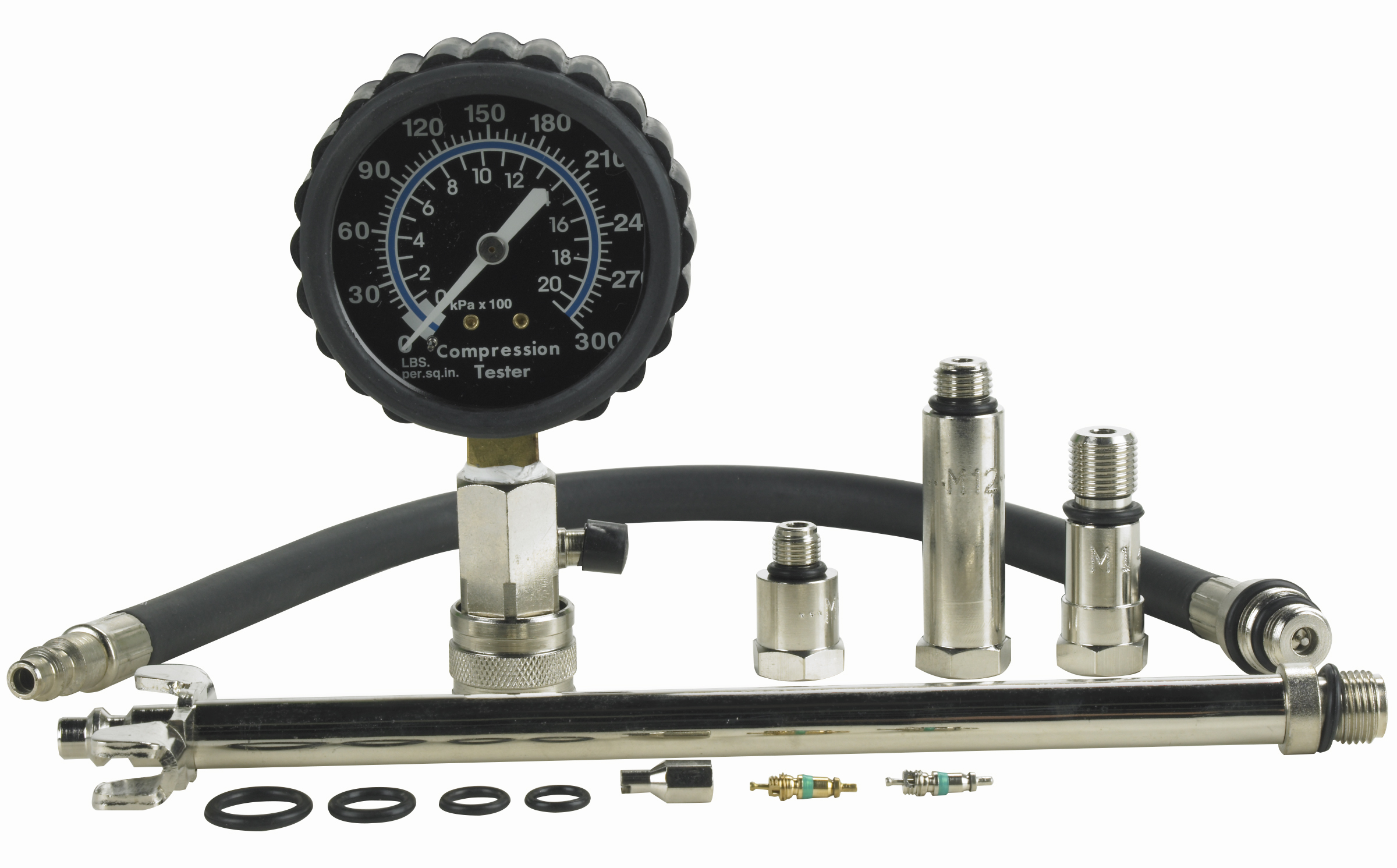

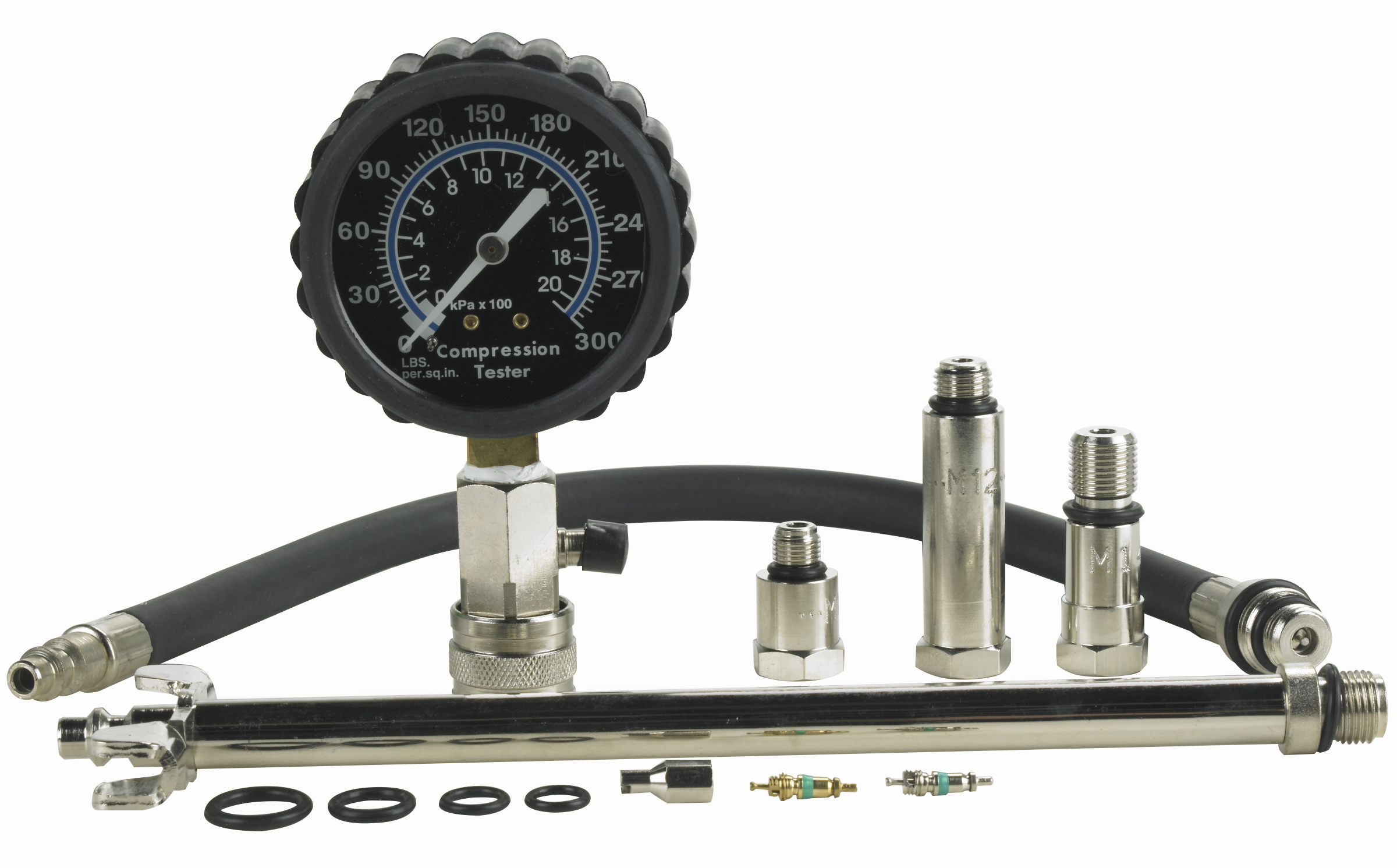

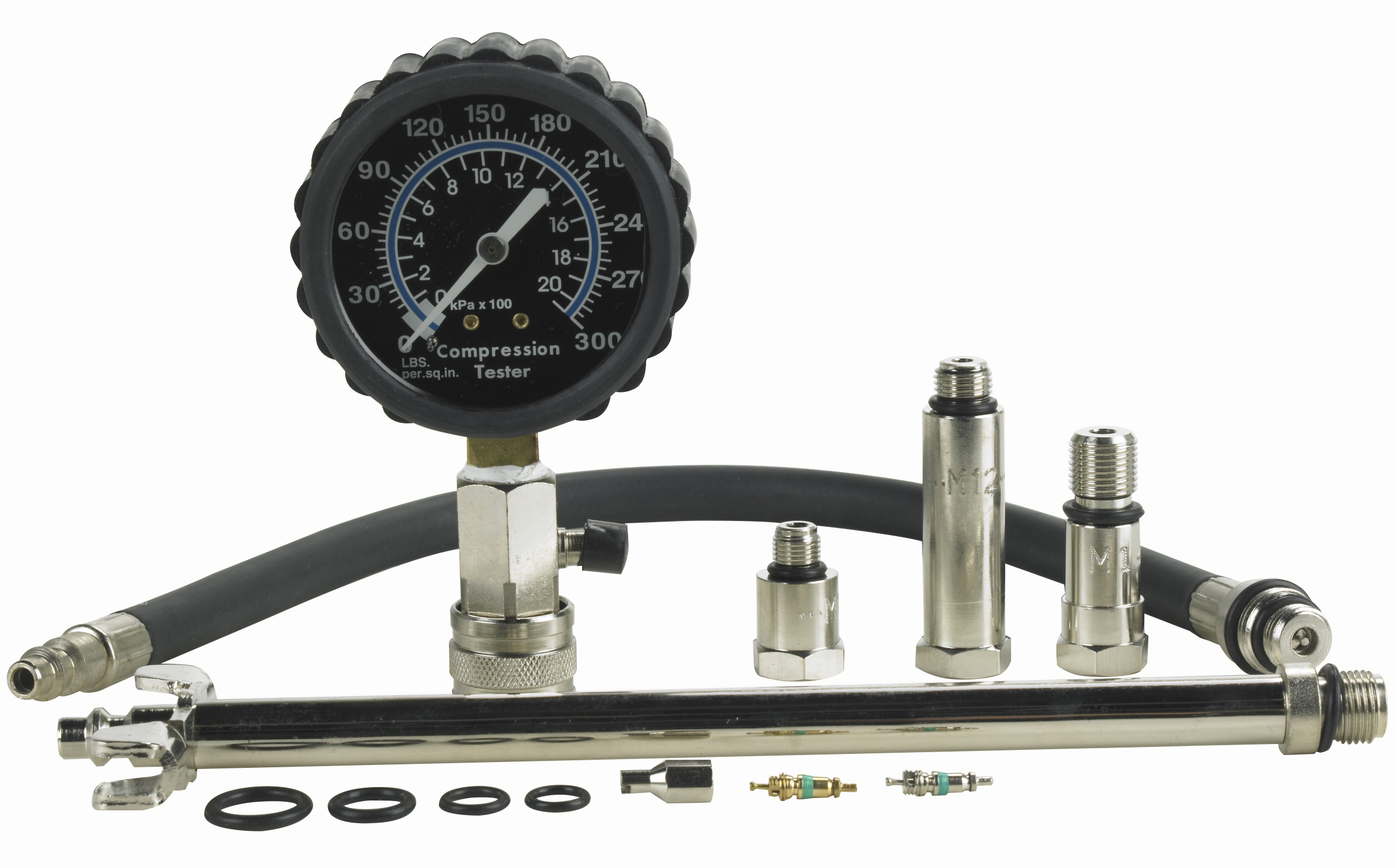

Bosch's FIX 7828 Professional Compression Tester Kit is an ideal tool for detecting worn piston rings, burnt valves, and blown head gaskets on most foreign and domestic vehicles, small engines, motorcycles, snowmobiles, and ATVs. Convenient push-button side release valve allows repeated testing without the need to disconnect between tests saving you valuable time and eliminating the hassle. Gauge features a 2-1/2 inch diameter, easy-to-read white face with standard and metric scales: 0-300 PSI and 0-2100 kPa, highly accurate Bourdon Tube movement, and heavy-duty rubber boot. The 17 inch, high-pressure, flexible, oil and grease resistant hose features a quick release connection at the gauge for faster, easier use. Includes adapters for most standard spark plug thread sizes: 10mm, 12mm, 14mm, 14mm long reach, and 18mm plus a handy repair kit with valves and rubber O-rings. Note: it is very important to ensure that adapters are securely tightened to the hose to prevent possible separation when removing the tester from the cylinder head. Includes comprehensive instructions in English, Spanish, and French. 1 year warranty.

  • Bosch's Professional Compression Tester Kit detects worn piston rings, burnt valves, and blown head gaskets on most foreign and domestic vehicles, small engines, motorcycles, snowmobiles, and ATVs
  • Convenient push-button side release valve allows repeated testing without the need to disconnect between tests
  • Gauge features a 2-1/2 inch diameter, easy-to-read white face with standard and metric scales: 0-300 PSI and 0-2100 kPa, accurate Bourdon Tube movement, and heavy-duty rubber boot
  • 17 inch, high-pressure, flexible, oil and grease resistant hose features a quick release connection at the gauge for faster, easier use
  • Includes adapters for most standard spark plug thread sizes: 10mm, 12mm, 14mm, 14mm long reach, and 18mm plus a handy repair kit with valves and rubber O-rings
Read More
Read Less
Features
Measures cylinder compression to accurately diagnose engine condition
Compatible with most standard spark plug threads
Quick disconnect coupler separates hose from gauge for faster,easier connections to the engine
Push button side release valve allows repeated testing without disconnecting
Includes adapters for most standard spark plug threads: 10mm,12mm, 14mm, 4mm long reach, 18mm
Repair kit includes valves and rubber O-rings
Easy-to-read, 2-1/2" professional gauge
Bourdon tube movement for accurate readings
Heavy-duty rubber boot protects gauge
Standard and metric scales: 0-300 lbs psi and 0-2100 kPa
Tool pouch keeps parts organized
This product can expose you to chemicals including 1,3-Butadiene, which is known to the State of California to cause birth defects.
For more information for to www.P65Warnings.ca.gov
Kit Contents
Professional Compression Tester Kit
10mm
12mm
14mm
14mm long reach
and 18mm adapters
Repair kit including valves and rubber O-rings
User manual
