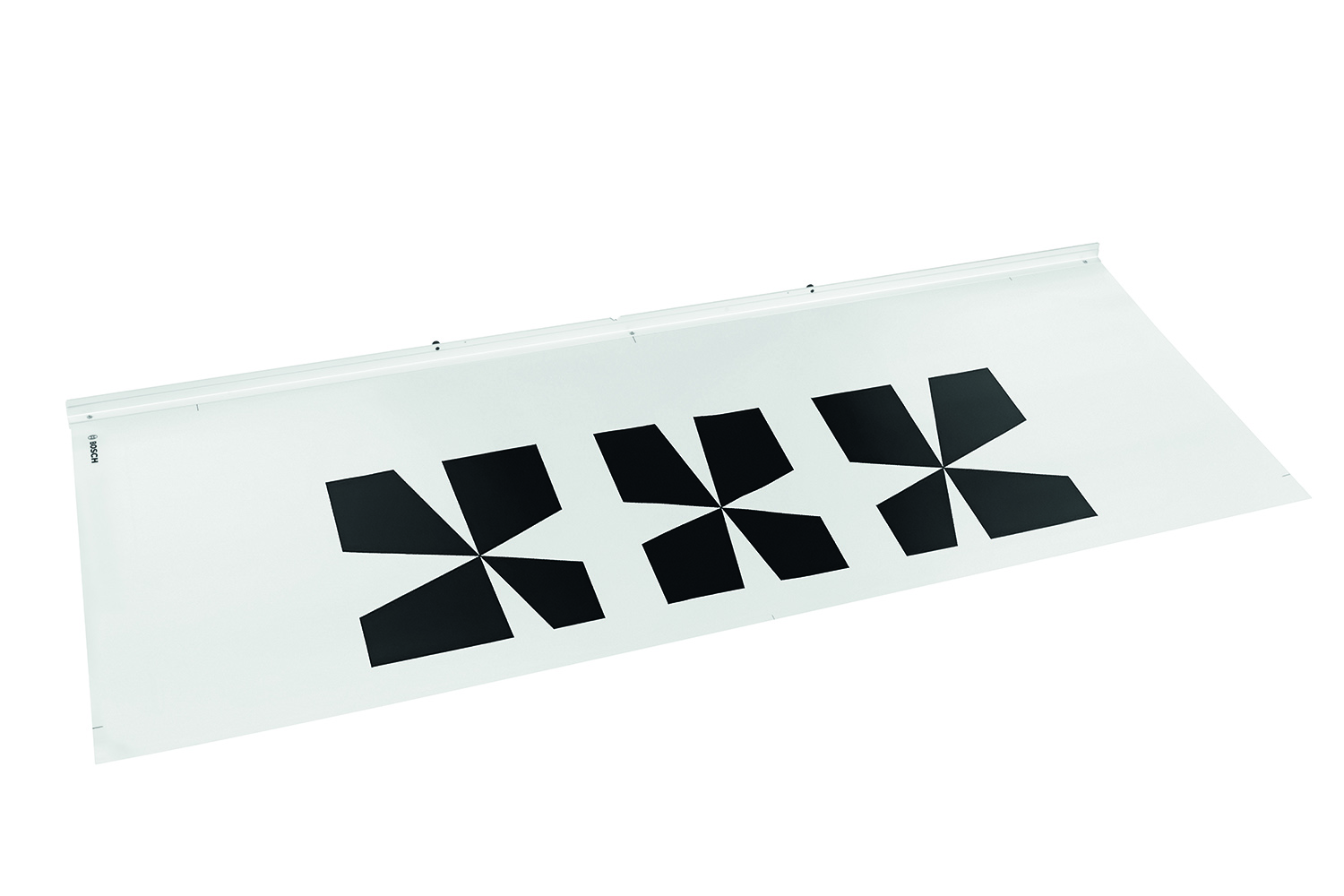

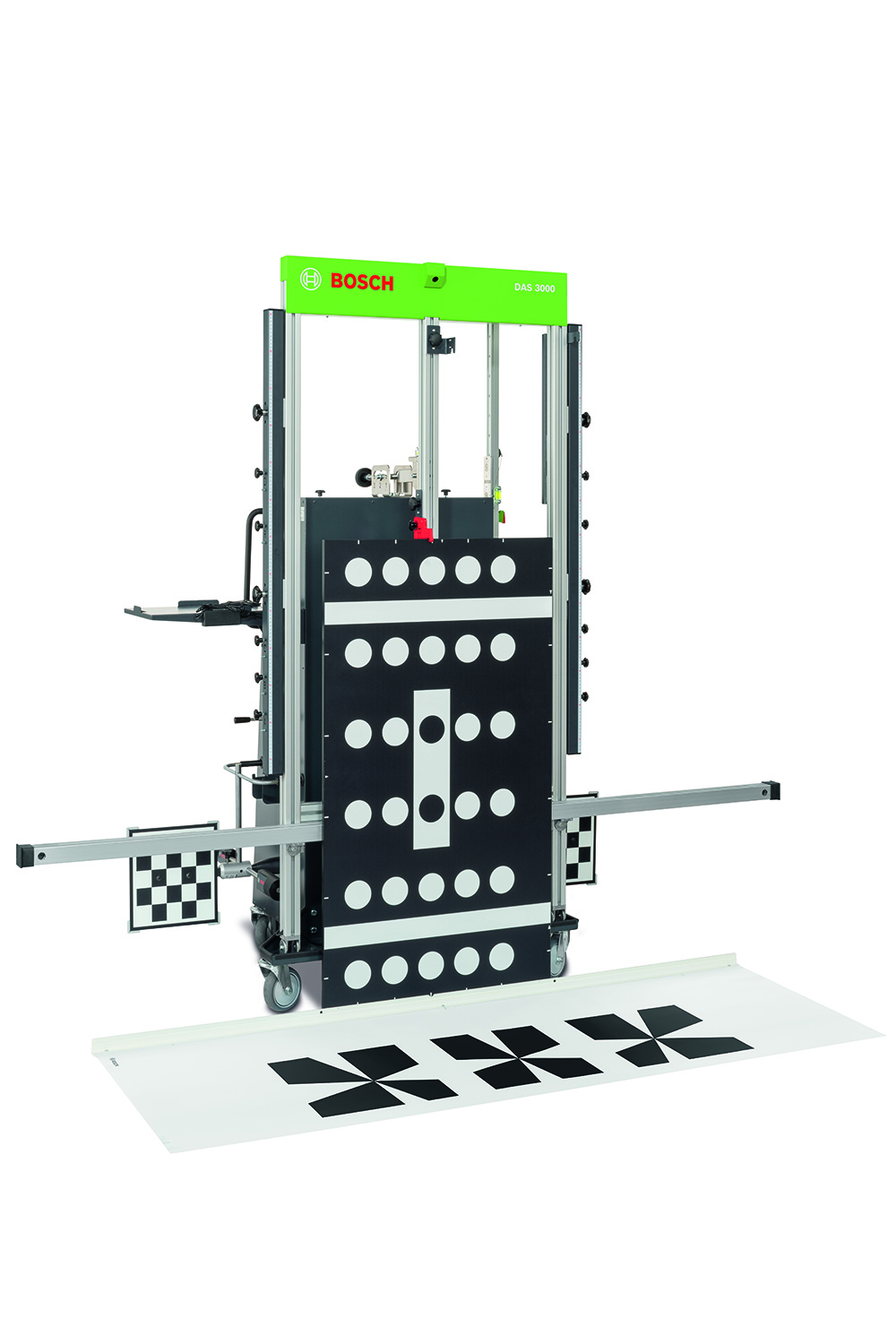

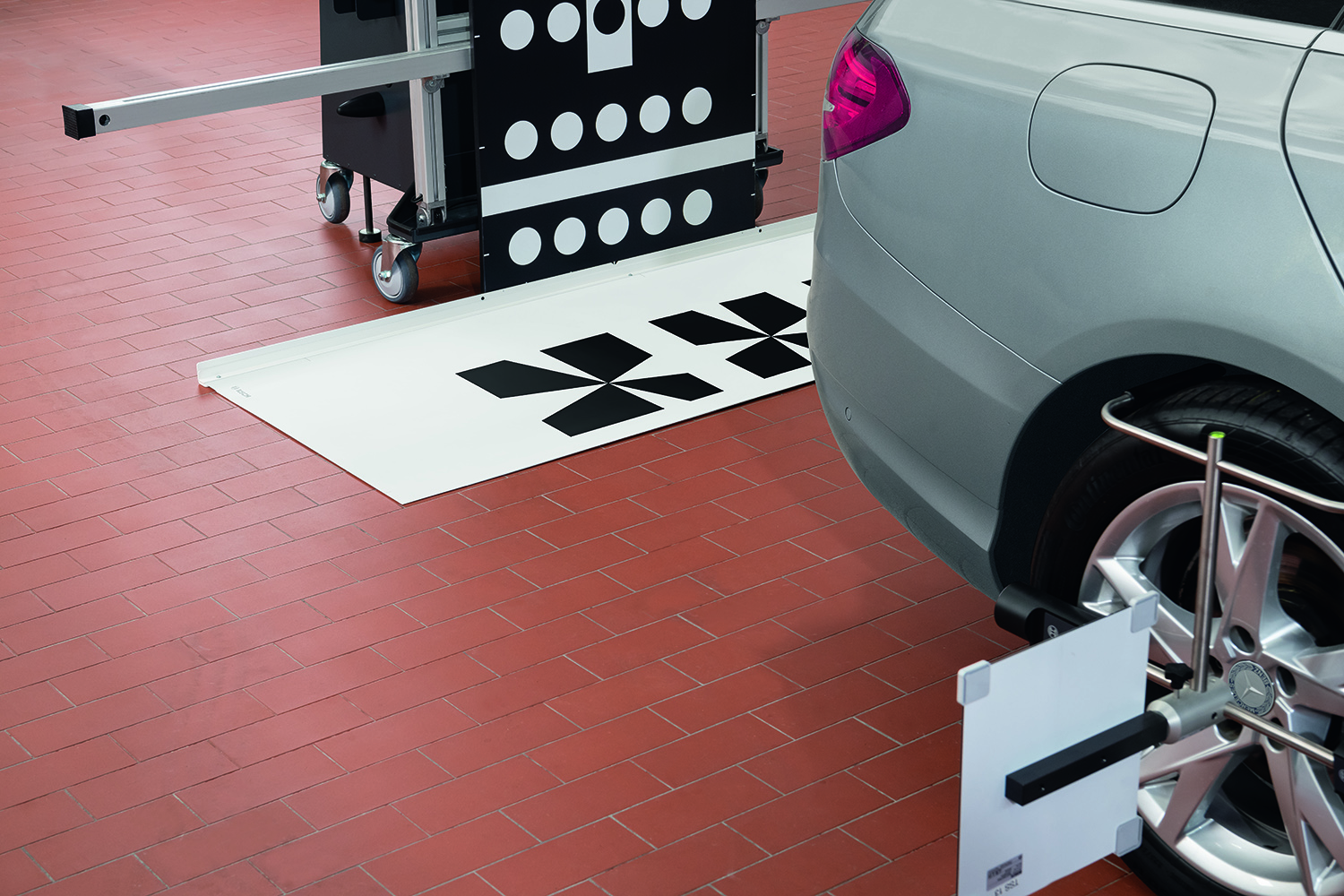

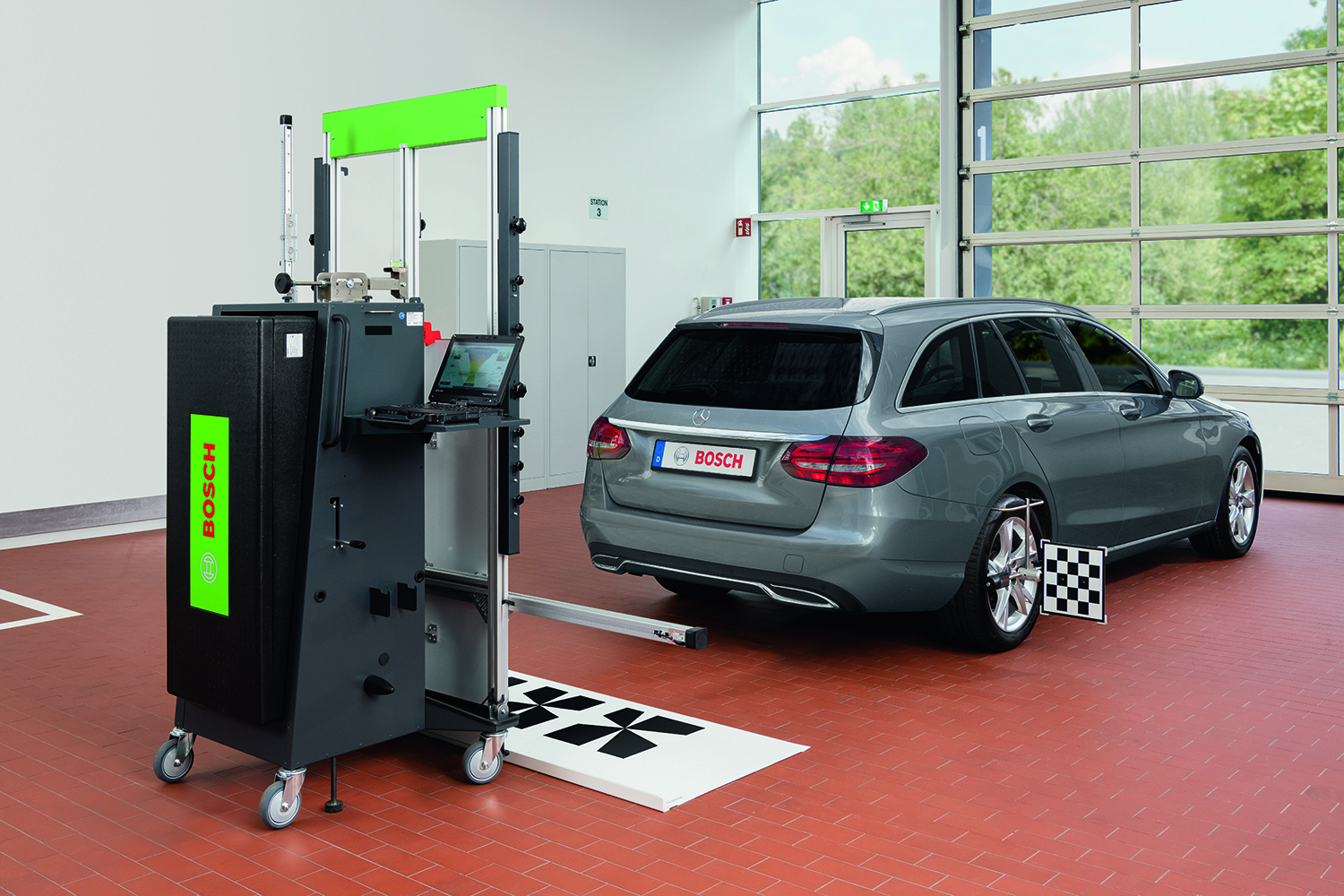

The CTA 511 is a floor mat target for rear view camera calibration on certain Mercedes-Benz vehicles. The CTA 511 integrates with the DAS 3000 vision positioning and the guided tour on ADAS-enabled Bosch scan tools for quick and easy placement.

• „Set made by floor mat 6.5' x 2.4' (1,970 x 742 mm) and L-shaped metal frame for proper alignment and setup by DAS 3000
• Robust vinyl material (500 g/m2) for safer calibration due to proper waves-free flatness of the mat
• Minimum floor space requirement (L x W): 29.5' x 9.8' or 9 x 3 m

Alignment method: Performed using the DAS 3000
