New Software Features:

Version 7.0 update includes more model year 2026 and 2025 vehicle coverage and additional ADAS calibrations, with over 3,500 new special tests and 1,100 system applications. Additional feature enhancements include continued scan speed improvements, software update speed improvements, PDF report merging for diagnostic scan and calibration reports, and TruSpeed Repair branding refresh.

Coverage Highlights:

• 2026 Coverage added – ADAS Features, DTC, Data support and Bi-Directional functions
  • Buick – Envista
  • Ford – Bronco Sport, Escape, Expedition, Explorer, F-550 Super Duty, Maverick, Police Interceptor Utility
  • Honda – Prologue
  • Jaguar – F-Pace
  • Land Rover – Defender 110, Defender 130, Defender 90, Discovery, Discovery Sport, Ranger Rover, Range Rover Evoque, Range Rover Sport, Range Rover Velar
  • Lexus – GX550, UX300h
  • Mazda – CX-90
  • RAM – 2500, 3500
  • Subaru – Crosstrek, Forester, Impreza
  • Toyota – bZ, Crown Signia, Tacoma
• 2025 Coverage added – ADAS Features, DTC, Data support and Bi-Directional functions
  • Jaguar – F-Pace, I-Pace
  • Land Rover – Defender 110, Defender 130, Defender 90, Discovery, Discovery Sport, Ranger Rover, Range Rover Evoque, Range Rover Sport, Range Rover Velar
  • Porsche – 911

• Mercedes Coverage added – ADAS Features, DTC, Data support and Bi-Directional functions

  • MY2022 C-Class (205)
  • MY2020 CLA-Class (117)
  • MY2023 GLB-Class (247)



  Multiple Models and Years Coverage added - Bi-Directional functions

  *ADS 525X/625X only for bi-directional functions for Hyn/Kia/Gen, Nissan AutoAuth and DoIP system coverage **All Dynamic ADAS calibrations are included in standard ADS Tool Subscription. Static calibrations that require ADAS targets and fixtures require additional ADAS Subscription used with ADS 625/625X.

Software Highlights:

Rapid Scan Improvements –

• 4 brands have been the focus for this release: Honda, VAG, BMW, MB
• Up to 24x rapid scan improvements on certain models.
• Some generic improvements that will be seen in other brands as well.

Quick Updates | Phase 2: Update Deployment and Installation

• In addition to Phase 1 released in October, this update reduces install time significantly to under 10 minutes.
• Additionally, the updater has now been enhanced to detect when the VCI Firmware is up to date and automatically skip its installation step, improving overall installation efficiency.

Merge PDF Reports option - Feature added that allows PDF report merging for diagnostic scan and calibration reports.

1. Navigate to the Saved Reports section
   1. Go to Settings → Saved Reports.

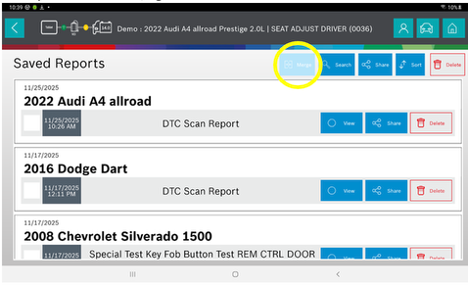

   2. A new "Merge" button is available on this screen. It remains disabled until two or more reports are selected, fig 1.1.



2. Select multiple reports
   • Choose two or more saved reports.

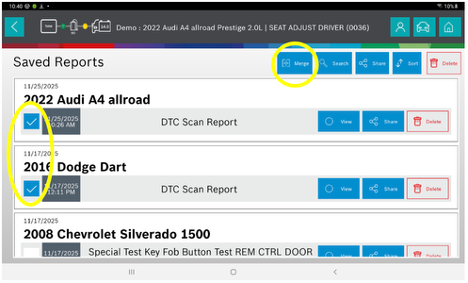

   • Once multiple reports are selected, the Merge button becomes active, fig 1.2.



3. Combine the selected reports
   • After clicking Merge the selected PDF reports.

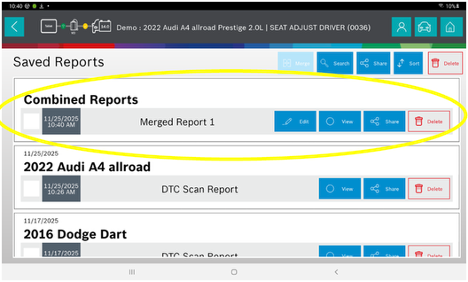

   • The system generates a new consolidated PDF file, which appears under the newly added "Combined Reports" section, fig 1.3.



4. Edit the combined report’s name
   • Select the edit icon next to the newly generated combined report.

   • This opens a dialog where you can rename the report, fig 1.4.



5. Save the new name

   • Click the save button to update the report name, see fig 1.4 & the updated name will be saved, fig 1.5.



TruSpeed Repair: X-Series Branding Refresh

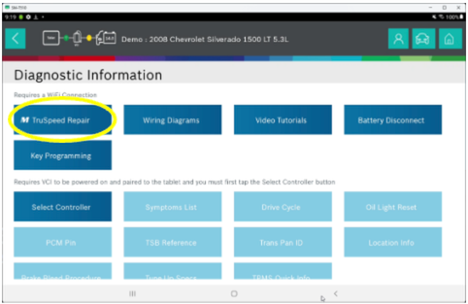

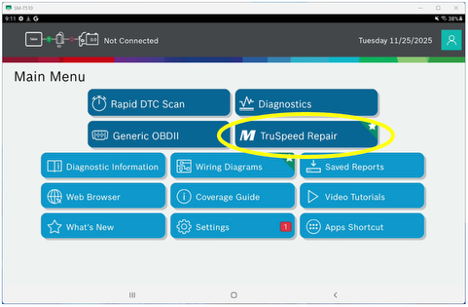

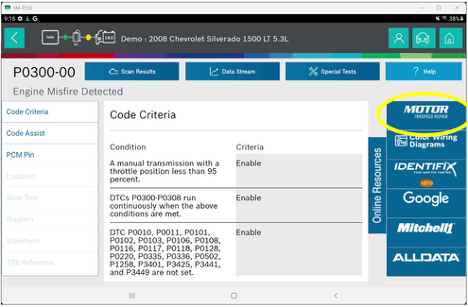

• Repair-Source is migrating to TruSpeed Repair by MOTOR & the branding on the tool has been updated as shown in figures 1.6, 1.7 & 1.8.
• TruSpeed offers expanded and faster coverage development, ADAS related procedures, advanced search capabilities and integrated information with hyperlinks to component locations, procedures and DTC troubleshooting.
